Networking

Overview

Phonemos uses an Nginx reverse proxy as the single external entry point. Nginx terminates TLS on ports 80 (redirect) and 443 (HTTPS) and routes requests to internal services over Docker networks. All inter-service communication happens on private Docker networks that are not exposed to the host.

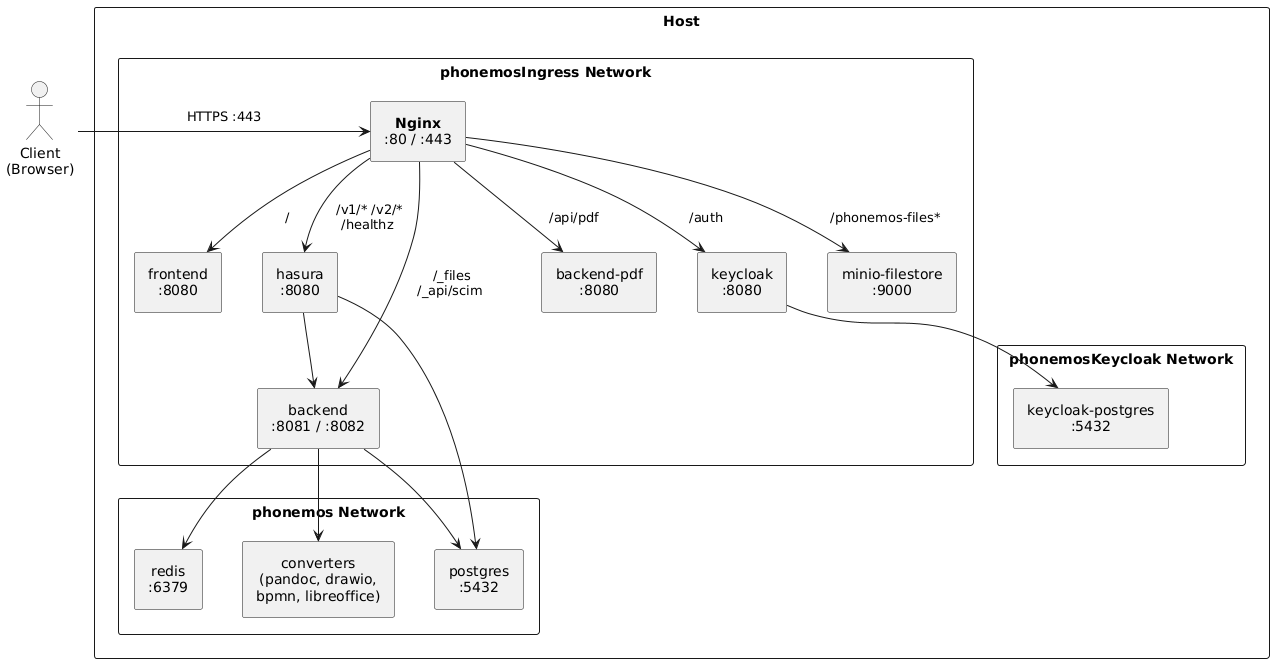

Docker Networks

Three Docker networks isolate traffic between service groups:

phonemosIngress

Services that need to be reachable from the Nginx reverse proxy:

Service	Role
ingress	Nginx reverse proxy
frontend	Web UI
hasura	GraphQL API
backend	Main backend
backend-pdf	PDF generation
keycloak	Authentication
minio-filestore	Object storage

phonemos

Internal application communication (not exposed through Nginx):

Service	Role
hasura, backend, backend-pdf	Application services (also on phonemosIngress)
postgres	PostgreSQL database
redis	Cache and job queue
pandoc, converter-*	Document converters (Pandoc, Draw.io, BPMN, LibreOffice, Linux tools)
confluence-converter	Confluence import converter
youtrack-connector, jira-dc-connector	External connectors (optional)

phonemosKeycloak

Isolated network for Keycloak and its dedicated database (keycloak and keycloak-postgres). Note that keycloak is on both phonemosKeycloak and phonemosIngress, bridging the two networks.

Traffic Flow

External traffic:

A client sends a request to the server on port 443 (or 80, which redirects to 443).
Nginx terminates TLS and inspects the URL path.
Based on the path, Nginx proxies the request to the appropriate upstream service on the phonemosIngress network.

Internal traffic:

hasura and backend communicate with postgres and redis on the phonemos network.
backend dispatches conversion jobs to converter services via redis on the phonemos network.
keycloak communicates with keycloak-postgres on the isolated phonemosKeycloak network.

No internal ports are published to the host. Only ports 80 and 443 are exposed externally.

Routing Table

URL Path	Upstream	Port	Location File
/	frontend	8080	phonemos.loc
/v1/, /v1alpha1/, /v2/*, /healthz	hasura	8080	phonemos.loc
/console	hasura	8080	phonemos.loc
/api/pdf	backend-pdf	8080	phonemos.loc
/_files	backend	8081	phonemos.loc
/_api/scim	backend	8082	scim.loc
/auth	keycloak	8080	keycloak.loc
/phonemos-files*	minio-filestore	9000	minio.loc

Ingress / Nginx Configuration

Nginx configuration is split across several files:

File	Location in container	Purpose
nginx.conf	/etc/nginx/nginx.conf	Main config (worker settings, gzip, log format)
phonemos.conf	/etc/nginx/conf.d/phonemos.conf	Server blocks (HTTP redirect, HTTPS with TLS)
routes.conf	/etc/nginx/routes.loc	Location includes (which .loc files to load)
servers.conf	/etc/nginx/servers.loc	Additional server blocks
*.loc	/etc/nginx/conf.d/*.loc	Individual location routing rules

Key Settings

Setting	Value
HTTP/2	Enabled
Client max body size	50 MB
Proxy connect timeout	5 seconds
Proxy send/read timeout	60 seconds
Proxy buffering	Off
Gzip	On

TLS Certificates

The setup script supports three TLS modes, configured via TLS_TYPE in /etc/phonemos/setup.conf:

Public certificate — provide your .crt and .key files during setup. Recommended for production.
Self-signed — generated automatically using OpenSSL. Added to system CA store and a Java keystore is created. Suitable for testing.
Skip — no certificate configured. You must set up TLS manually.

Certificate files are located at /etc/phonemos/ingress/certs/cert.crt and /etc/phonemos/ingress/certs/cert.key.

DNS and Firewall

DNS: Create an A-record (or CNAME) pointing your hostname to the server's IP address. The hostname must be resolvable for Keycloak and the application to function correctly.

Firewall: Only two ports need to be accessible externally:

Port	Protocol	Purpose
80	TCP	HTTP (redirects to HTTPS)
443	TCP	HTTPS (all application traffic)

All other ports (8080, 8081, 8082, 9000, 5432, 6379) are internal to Docker networks and are not published to the host.

Service Discovery

Nginx uses Docker's built-in DNS resolver (127.0.0.11) to resolve container names to IP addresses at request time. Each location block uses a variable to hold the upstream name, forcing Nginx to resolve DNS on every request rather than caching it at startup:

location / {
    resolver 127.0.0.11 valid=30s ipv6=off;
    set $upstream_frontend frontend;
    proxy_pass http://$upstream_frontend:8080$request_uri;
}

This ensures Nginx handles container restarts gracefully — if a container gets a new IP after a restart, Nginx resolves the updated address within 30 seconds.

Customization

Adding Routes

Edit /etc/phonemos/ingress/routes.conf to include or exclude location files. Comment out lines to disable routing to specific services (e.g. if you use an external Keycloak or MinIO).

Adding Server Blocks

Edit /etc/phonemos/ingress/servers.conf to add additional Nginx server blocks (e.g. for a separate subdomain or custom redirect rules).

Docker Compose Overlay

Edit /etc/phonemos/ingress/overlay.yaml to customize the ingress Docker Compose configuration. After making changes, restart the ingress service:

sudo systemctl restart phonemos-ingress
